Motor Control Centers — MCC
Centralized motor operation, protection and control for pumps, fans, HVAC and production equipment.
Final configuration, ratings, components and integration scope are confirmed only after review and approval of project documents.
From complete assembly to engineered detail

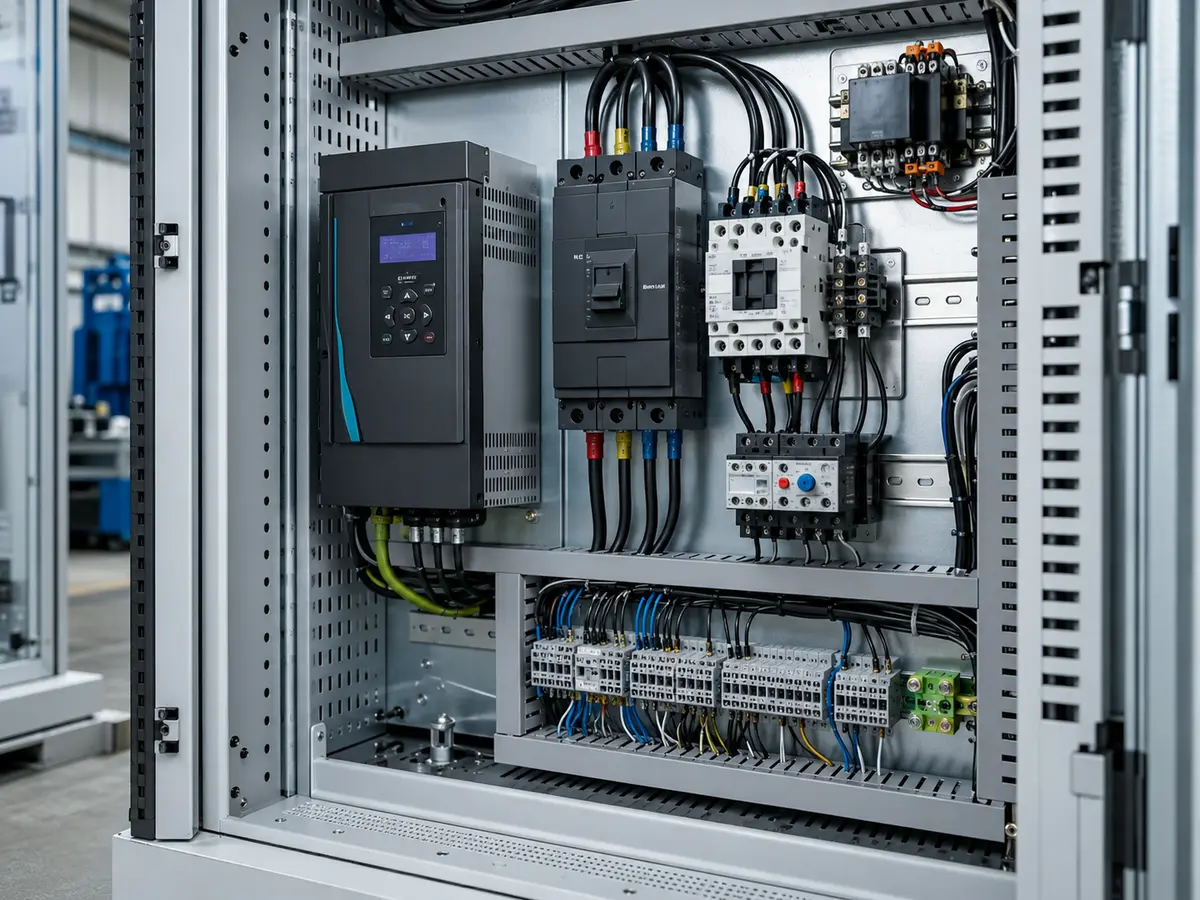

Representative visuals illustrate the design and assembly direction. The final product is governed exclusively by the project scope, drawings and approvals.
One coordinated center for motor operation, protection and control
The assembly is engineered around the actual project scope, including ratings, protection, operating method, monitoring and integration. Control or integration functions are not assumed unless they are included in the approved technical scope.
- ✓Centralized motor operation and protection
- ✓Reduced field-control fragmentation
- ✓Defined integration with PLC, BMS or SCADA
- ✓Pumps and fans
- ✓Compressors and HVAC
- ✓Production lines and conveyors
- ✓Process equipment
Only configurations and interfaces included in the approved project design and scope are applied.
Information required before quotation
Complete inputs help define scope, exclusions and required approvals more accurately.
- 01Motor list and ratings
- 02Starting method: DOL, star-delta, soft starter or VFD
- 03Control philosophy and interlocks
- 04PLC/BMS/SCADA I/O scope
- 05Fault level, IP rating and installation environment
