Distribution Panel Boards
MDB, SMDB and DB assemblies for distribution, isolation, protection and monitoring; the current profile lists MDB capability up to 6300 A, subject to configuration and design verification.
Final configuration, ratings, components and integration scope are confirmed only after review and approval of project documents.
From complete assembly to engineered detail

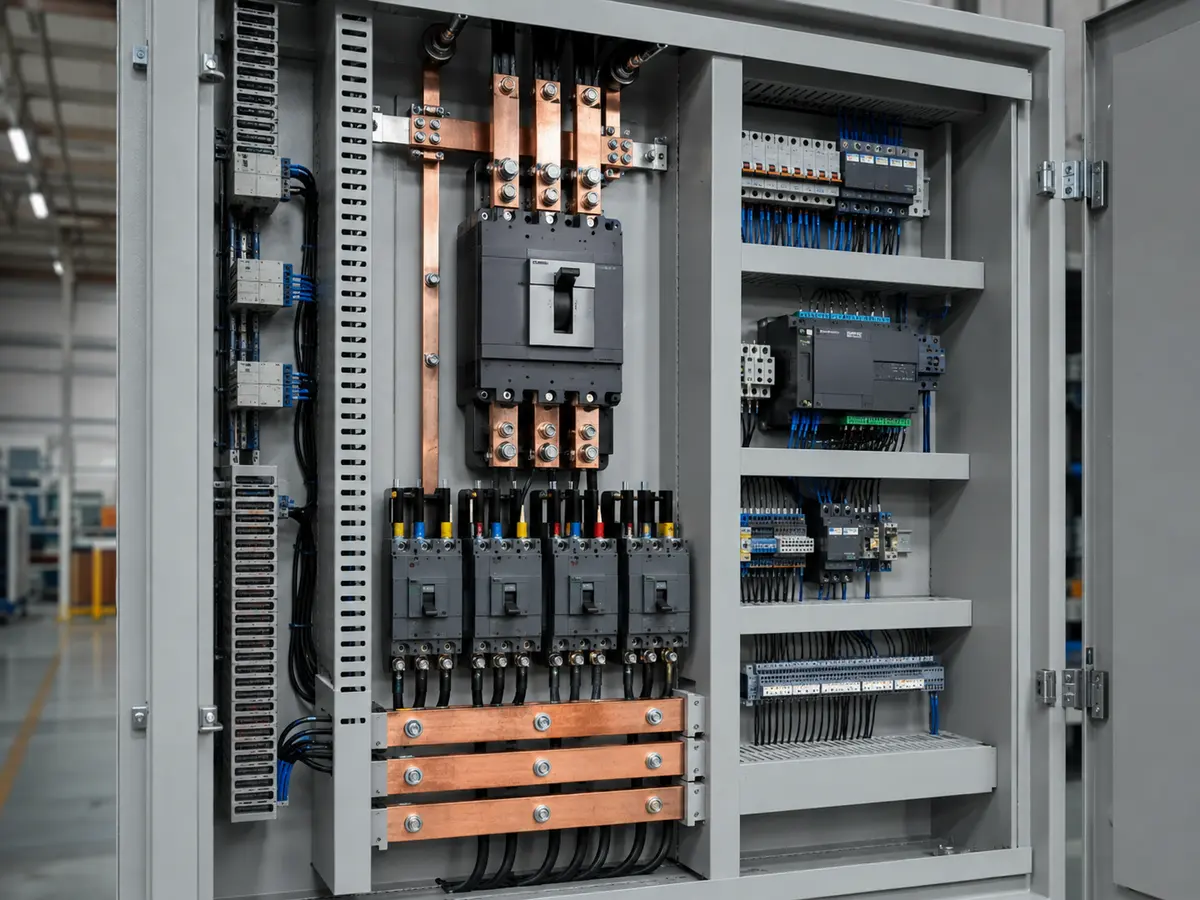

Representative visuals illustrate the design and assembly direction. The final product is governed exclusively by the project scope, drawings and approvals.
Main and sub-main power distribution
The assembly is engineered around the actual project scope, including ratings, protection, operating method, monitoring and integration. Control or integration functions are not assumed unless they are included in the approved technical scope.
- ✓Structured power distribution
- ✓Circuit isolation and protection
- ✓Load monitoring where specified
- ✓Main incoming distribution
- ✓Sub-main distribution
- ✓Final distribution circuits
Information required before quotation
Complete inputs help define scope, exclusions and required approvals more accurately.
- 01Single-line diagram
- 02Busbar and fault ratings
- 03Incomer / outgoing schedule
- 04Form of separation and IP rating
